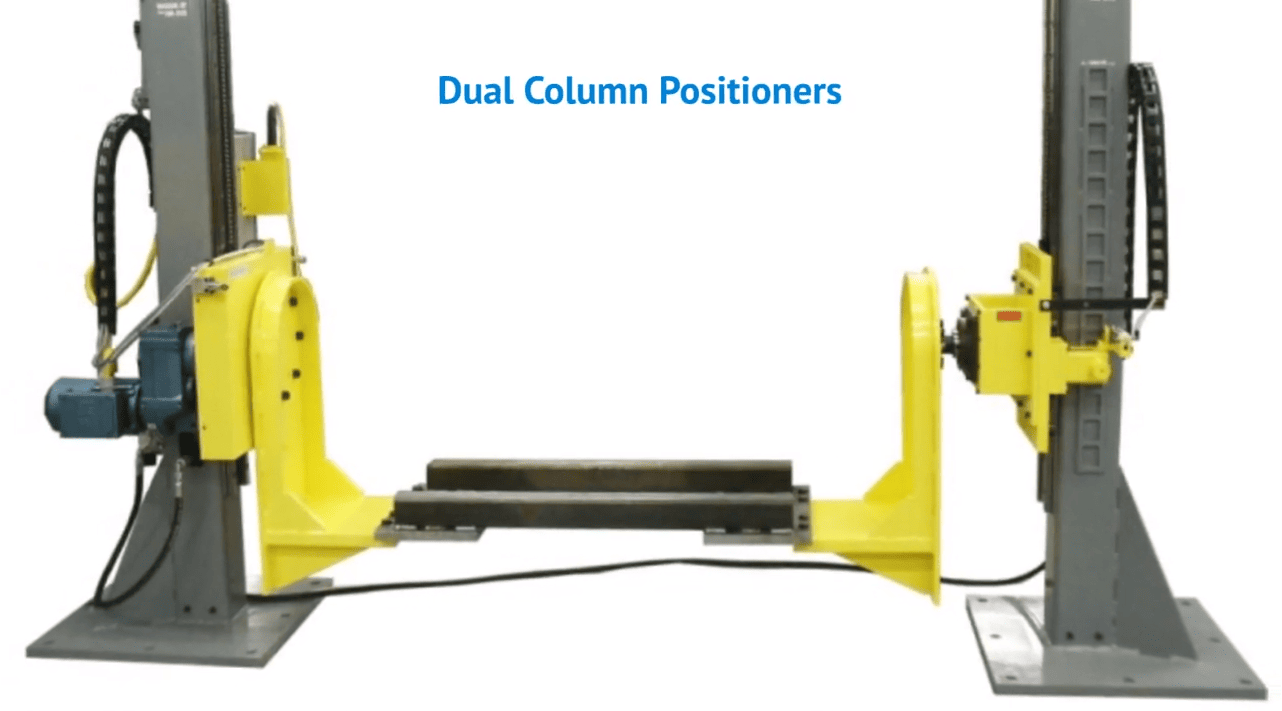

Dual Column Positioners

Work positioners offer a great solution for material handling applications across numerous industries. They allow operators to easily move heavy loads or workpieces while significantly reducing the risk of workplace accidents and injuries.

At Unidex Inc., we’re a leading provider of ergonomic material handling equipment, including our EH Series dual-column work positioners. This work positioner facilitates 360° of rotation on its centerline and allows for the simultaneous operation of its two cylinders. Available with numerous custom features, the EH Series dual-column work positioner can be tailored to fit your unique application.

About Dual-Column Positioners

EH Series dual-column positioners from Unidex deliver unmatched flexibility, durability, safety, and versatility. Because they allow for easy access, they are an ideal choice for applications such as product assembly, welding, work positioning, build stations, repairs, and various other manufacturing, fabrication, and production operations.

Standard Models

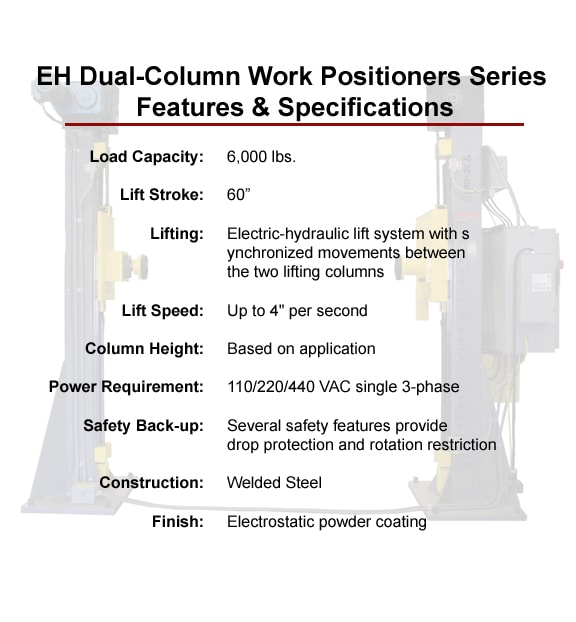

6,000-LB. LOAD CAPACITY; 60-INCH LIFT STROKE

Our standard dual-column positioners feature a maximum positioning load of up to 6,000 lbs. Vertical movement is driven by an electric-hydraulic pump/chain design which operates two cylinders simultaneously. A carriage rides up and down each side along linear rails bolted to the lifting column. The fixture assembly is capable of 360° of rotation on an axis parallel to the floor.

The dual-column work positioner is typically engineered-to-order to ensure our customers’ unique or special requirements are met. Unidex can also provide on-site consulting services to determine your requirements and integrate the right EH dual-column work positioner into your production process.

Dual-Column Work Positioner Options

EH Series dual-column work positioners are available with numerous customizable options, including:

  • Variety Of Load Capacities and Lift Strokes
  • Pendant-Controlled Height Adjustment
  • Stainless Steel Construction
  • Powered Rotations

Benefits of Work Positioners

Work positioners offer a wide range of benefits that make them well-suited to a variety of applications. These benefits include:

  • Ergonomics. Work positioners improve ergonomics in the workplace, resulting in enhanced productivity and safety.
  • Minimized Injury Risk. Work positioners allow workers to complete tasks in a comfortable position, reducing the risk of strain or injury.
  • Enhanced Control & Load Capacity. EH dual-column work positioners allow for controlled lifting speeds as well as high load capacities.
  • Efficiency. Work positioners can be customized to meet the needs of specific tasks. This level of customization improves completion times, thus enhancing efficiency.
  • Footprint. EH dual-column positioners can fit in constricted areas. This allows more equipment to safely fit within a limited work floor.
  • Versatility. EH dual-column positioners can be combined to create a positioning system with numerous set controls and actions. They feature a complete range of motion (360°), allowing them to rotate or lift complete workstations.
  • Long service life. Our work positioners feature a durable construction with welded steel components to ensure a long service life.

Dual-Column Work Positioners From Unidex

Unidex offers heavy-duty dual-column work positioners manufactured in the USA to adhere to exacting standards. Our work positioners are constructed from high-quality welded steel and undergo rigorous testing before shipment to ensure performance. Additionally, each unit features a durable, baked-on powder coat finish for enhanced longevity.

To meet a range of application needs, our EH dual-column positioners are available with a wide range of customized options. For more information about our extensive catalog of work positioners, or to get started on your custom solution, contact us today.



Dual-Column Work Positioner
