Unidex Application Gallery by Product Series



INDUSTRIAL MANIPULATORS

UM Series Underhung/Overhead Mounted Manipulators

Features a manipulator mounted to an overhead traveling system to perform the work of several machines. Available in rigid-column and telescoping models. Standard load capacity 300 lbs.; lift stroke 60 inches.

Link to Product Page Link to Photo Gallery



ECL Series Electric-Column Lift Manipulators

Provides fine height adjustment that is ideal for close tolerance positioning applications. Standard load capacities 250 & 500 lbs.; lift stroke 60 inches.

Link to Product Page Link to Photo Gallery



EH Series Electric-Hydraulic Manipulators

Provides compact lifting and maneuvering of light and medium-duty loads. Standard load capacity 500 lbs.; lift stroke 60 inches.

Link to Product Page Link to Photo Gallery



AO Series Air/Oil Hydraulic Manipulators

Runs on shop air and self-contained oil supply to provide effortless lifting and positioning. Standard load capacity 250 lbs.; lift stroke 60 inches.

Link to Product Page Link to Photo Gallery






MOBILE LIFTS AND POSITIONERS

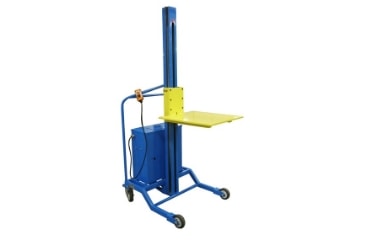

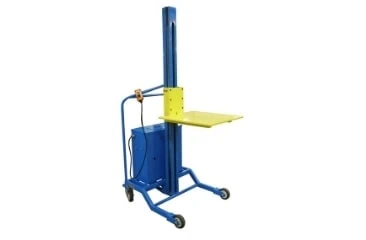

PE Series Light-Duty Battery-Operated Workstations

Designed for frequent lifting chores where the weight of the load rules out manual handling. Standard load capacity 200 lbs.; raised height 51 inches.

Link to Product Page Link to Photo Gallery



PE Series Standard-Duty Battery-Operated Workstations

Designed for frequent lifting chores of heavier loads. Standard load capacity 500 lbs.; raised height 48 inches.

Link to Product Page Link to Photo Gallery



TPE Series Telescoping Battery-Operated Workstations

The telescoping version of the light-duty PE, specially designed to raise and position rolled products and materials. Standard load capacity 200 lbs.; raised height 96 inches.

Link to Product Page Link to Photo Gallery



PE Series Shaft Handling Battery-Operated Workstations

Specially designed unit featuring a shaft head for ergonomic positioning and locking on the shaft end. Standard load capacity 170 lbs.; 36 to 48 inches raised height and 12-inch lowered height from center of the shaft.

Link to Product Page Link to Photo Gallery






WORK POSITIONERS

EH Series Standard-Duty Single-Column Workstations

Electric-hydraulic unit that provides compact lifting and maneuvering of light and medium-duty loads. Standard load capacity 500 lbs.; lift stroke 60 inches.

Link to Product Page Link to Photo Gallery



EH Series Heavy-Duty Twin-Column Workstations

Electric-hydraulic unit that provides compact lifting and maneuvering of heavy-duty loads. Standard load capacity 2,000 lbs.; lift stroke 36 inches.

Link to Product Page Link to Photo Gallery



EH Series Maximum-Duty Dual-Station Workstations

Tandem electric-hydraulic units to provide greater lifting capability with versatile positioning for heavier loads. Standard load capacity 6,000 lbs.; lift stroke 60 inches.

Link to Product Page Link to Photo Gallery



AHSC Series Adjustable-Height Workstations

Electric-hydraulic unit designed to raise and lower heavy loads for work positioning. Standard load capacity 2,000 lbs.; lift stroke 36 inches.

Link to Product Page Link to Photo Gallery






PORTABLE LIFTS AND TABLES

PHQL Series "Quick Lifter" Mobile Hydraulic Lift Tables

Low-cost, high-performance lift table designed for a wide range of shop applications. Standard load capacity 500 lbs.; lift stroke 16 inches to 44-inch table height.

Link to Product Page Link to Photo Gallery



PH Series Mobile Hydraulic Workstations/Lift Tables

Versatile lift table and workstation that can be customized with a wide range of optional features for many applications. Standard load capacities of 250 and 500 lbs; lift stroke 16 inches to 44-inch table height.

Link to Product Page Link to Photo Gallery



PHL Series Mobile Hydraulic Workstations

Manual lift to raise loads from floor level to up to four-feet high for transporting and production-line use. Standard load capacity 250 lbs.; lift stroke 48 inches.

Link to Product Page Link to Photo Gallery



TAL Series "Tanks-A-Lot" Gas Cylinder Trucks

Manually lift, transport, and position heavy gas cylinders, including "pick-and-place" positioning for welding. Standard load capacity 250 lbs.; lift stroke 14 inches from 25 inches lowered to 39 inches raised height.

Link to Product Page Link to Photo Gallery






ADJUSTABLE-HEIGHT WORKSTATIONS

MHW Series "Pedal-Lift" Workbenches

Self-contained lifting systems with manually-operated foot-pedal hydraulic system to raise the table in one-inch increments. Standard load capacity 500 lbs.; lift stroke 18 inches to 45-inch table height.

Link to Product Page Link to Photo Gallery



AHW Series "Power-Lift" Workbenches

Features an air/oil hydraulic lift system to offer an infinite range of height adjustments within the lift stroke. Standard load capacity 500 lbs.; lift stroke 18 inches to 45-inch table height for Model AHW2718 and 9.5 inches to 45-1/2 inches for Model AHW9536.

Link to Product Page Link to Photo Gallery



EHW Series "Easy-Lift" Electric-Hydraulic Workbenches

Electric-hydraulic lift system to handle heavier loads. Standard load capacity 1,000 lbs.; lift stroke 18 inches to 36-inch table height.

Link to Product Page Link to Photo Gallery



AHWP Series Personnel Lift/Work Platform

Air-hydraulic lift system to elevate workers so they can reach machinery, assembly line functions or perform other tasks. Standard load capacity 300 lbs.; verticals lifts of 12 and 18 inches to 19-1/2 inches high and 24 inches to 31-1/2 inches high depending on the model.

Link to Product Page Link to Photo Gallery



TL Series Pallet Lifts & Work Positioners

Electric-hydraulic lift system to improve transfer of material to and from assembly lines. Standard load capacity 2,000 lbs.; lift stroke 36 inches to 36-inch height.

Link to Product Page Link to Photo Gallery
