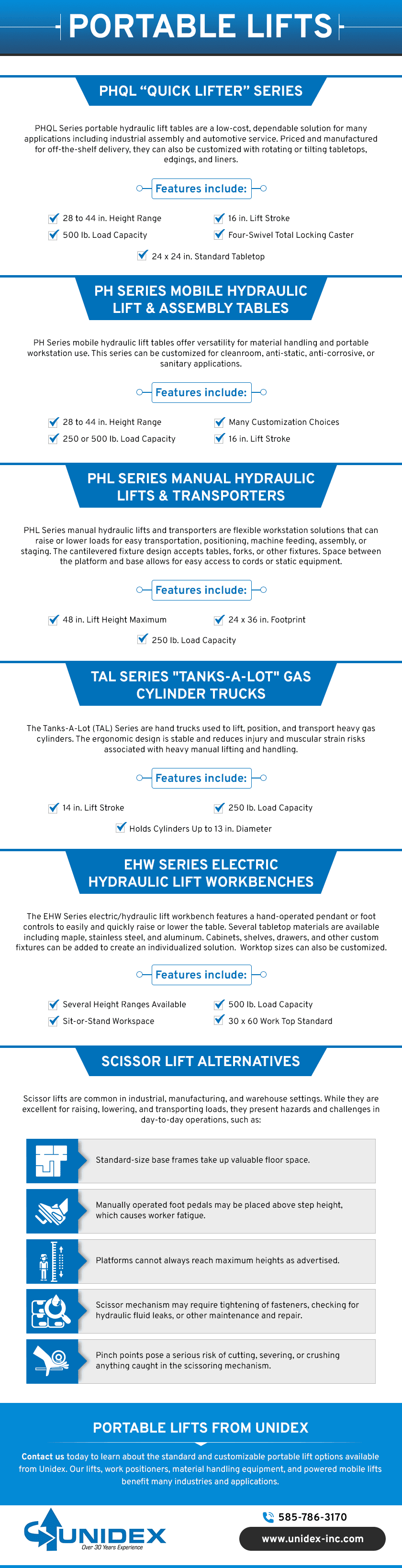

Portable Lifts

PHQL Series portable hydraulic lift tables are a low-cost, dependable solution for many applications including industrial assembly and automotive service. Priced and manufactured for off-the-shelf delivery, they can also be customized with rotating or tilting tabletops, edgings, and liners.

Features include:

• 28 to 44 in. Height Range
• 500 lb. Load Capacity
• 24 x 24 in. Standard Tabletop
• 16 in. Lift Stroke
• Four-Swivel Total Locking Caster

PH Series mobile hydraulic lift tables offer versatility for material handling and portable workstation use. This series can be customized for cleanroom, anti-static, anti-corrosive, or sanitary applications. Tabletop options include round, rectangular, and other custom shapes and finishes. Options for internal grounding and grounded attachment points for tools and personnel are available. Other features include custom colors and shelf-mounted below top.

Features include:

• 28 to 44 in. Height Range
• 250 or 500 lb. Load Capacity
• Many Customization Choices
• 16 in. Lift Stroke

PHL Series manual hydraulic lifts and transporters are flexible workstation solutions that can raise or lower loads for easy transportation, positioning, machine feeding, assembly, or staging. The cantilevered fixture design accepts tables, forks, or other fixtures. Space between the platform and base allows for easy access to cords or static equipment.

Features include:

• 48 in. Lift Height Maximum
• 250 lb. Load Capacity
• 24 x 36 in. Footprint

The Tanks-A-Lot (TAL) Series are hand trucks used to lift, position, and transport heavy gas cylinders. The ergonomic design is stable and reduces injury and muscular strain risks associated with heavy manual lifting and handling.

Healthcare facilities, laboratories, and industrial plants can use the TAL series for many applications including medical and industrial gases, compressed air, propane, butane, and welding gases. Powder coated welded steel and stainless steel construction are available.

Features include:

• 14 in. Lift Stroke
• Holds Cylinders Up to 13 in. Diameter
• 250 lb. Load Capacity

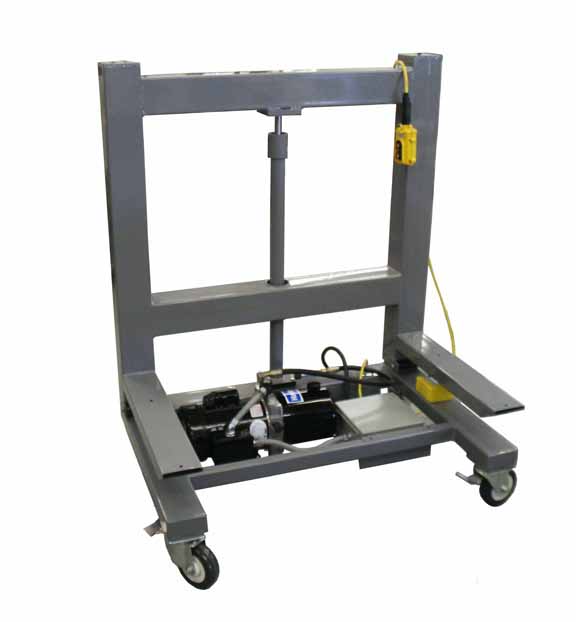

The EHW Series electric/hydraulic lift workbench features a hand-operated pendant or foot controls to easily and quickly raise or lower the table. Several tabletop materials are available including maple, stainless steel, and aluminum. Cabinets, shelves, drawers, and other custom fixtures can be added to create an individualized solution.  Worktop sizes can also be customized.

Features include:

• Several Height Ranges Available
• Sit-or-Stand Workspace
• 500 lb. Load Capacity
• 30 x 60 Work Top Standard

Scissor lifts are common in industrial, manufacturing, and warehouse settings. While they are excellent for raising, lowering, and transporting loads, they present hazards and challenges in day-to-day operations, such as:

• Standard-size base frames take up valuable floor space
• Manually operated foot pedals may be placed above step height, which causes worker fatigue
• Platforms cannot always reach maximum heights as advertised
• Scissor mechanism may require tightening of fasteners, checking for hydraulic fluid leaks, or other maintenance and repair
• Pinch points pose a serious risk of cutting, severing, or crushing anything caught in the scissoring mechanism

Unidex offers many portable lift solutions that are alternatives to scissor lifts. Options are available for compact yet heavy-duty workstations, tables, and platforms for material handling and lifting. They feature minimal maintenance, no pinch points, and ergonomic routine operation.

Contact us today to learn about the standard and customizable portable lift options available from Unidex. Our lifts, work positioners, material handling equipment, and powered mobile lifts benefit many industries and applications.
